| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | TMTeck |
| 인증: | CE |
| 모델 번호: | JC-10 |
| 최소 주문 수량: | 1pc |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 1pc/판지 상자 |
| 배달 시간: | 7-15 일 |
| 지불 조건: | T/T, Western Union, PayPal |
| 공급 능력: | 100pcs/월 |
| 모델: | JC-20 | 레티클-피트 격자 값: | 1mm |
|---|---|---|---|
| 물체 배율: | 1x | 접안렌즈 배율: | 20x |
| 전체 확대: | 20x | 이름: | 판독 현미경 |
| 안경 격자망상: | 8피트 이하 | 효과적 측정 범위: | 0-6mm |
| 강조하다: | Brinell microscope portable measuring,JC-10 microscope with LED lights,20x metallographic microscope with readout |
||

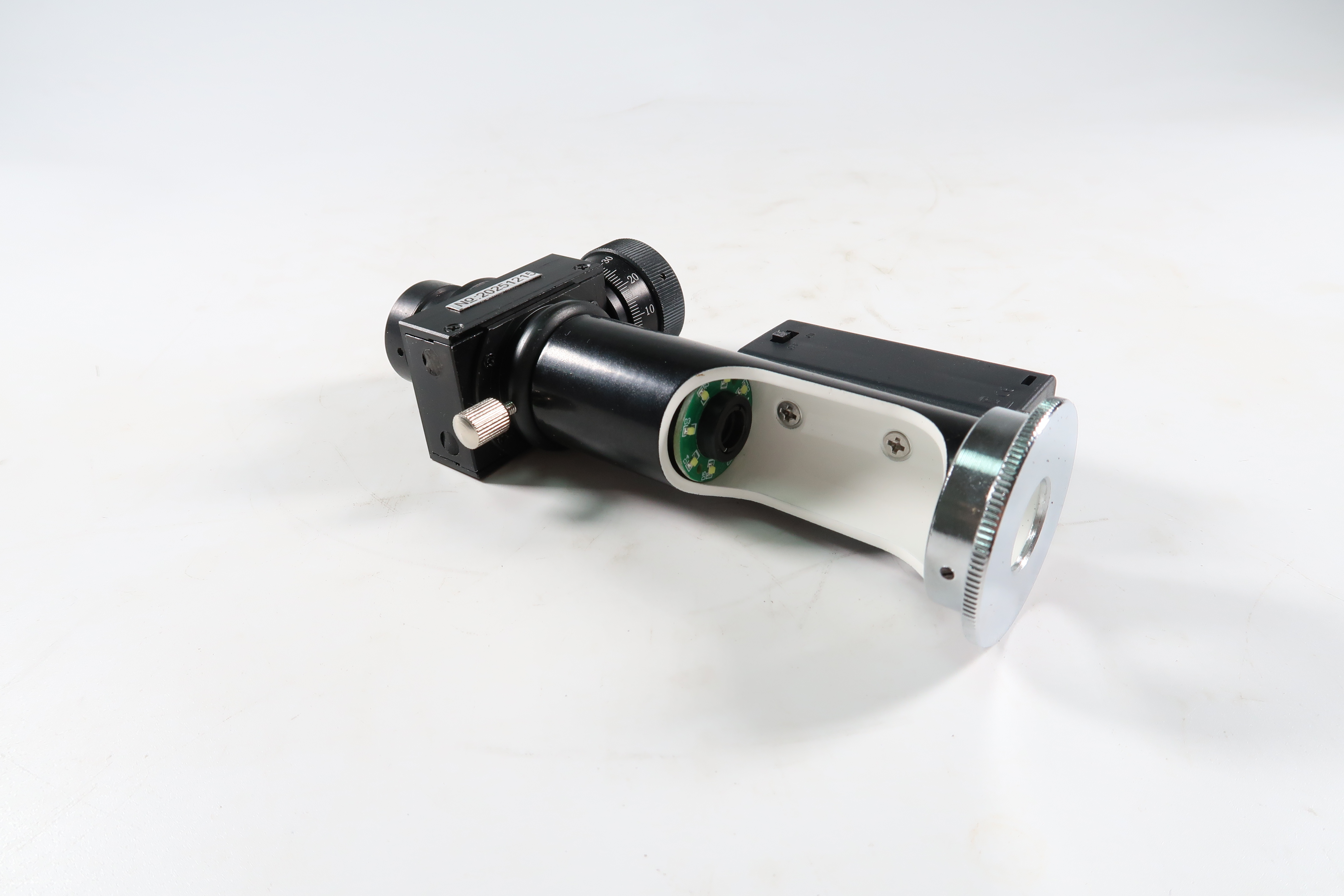

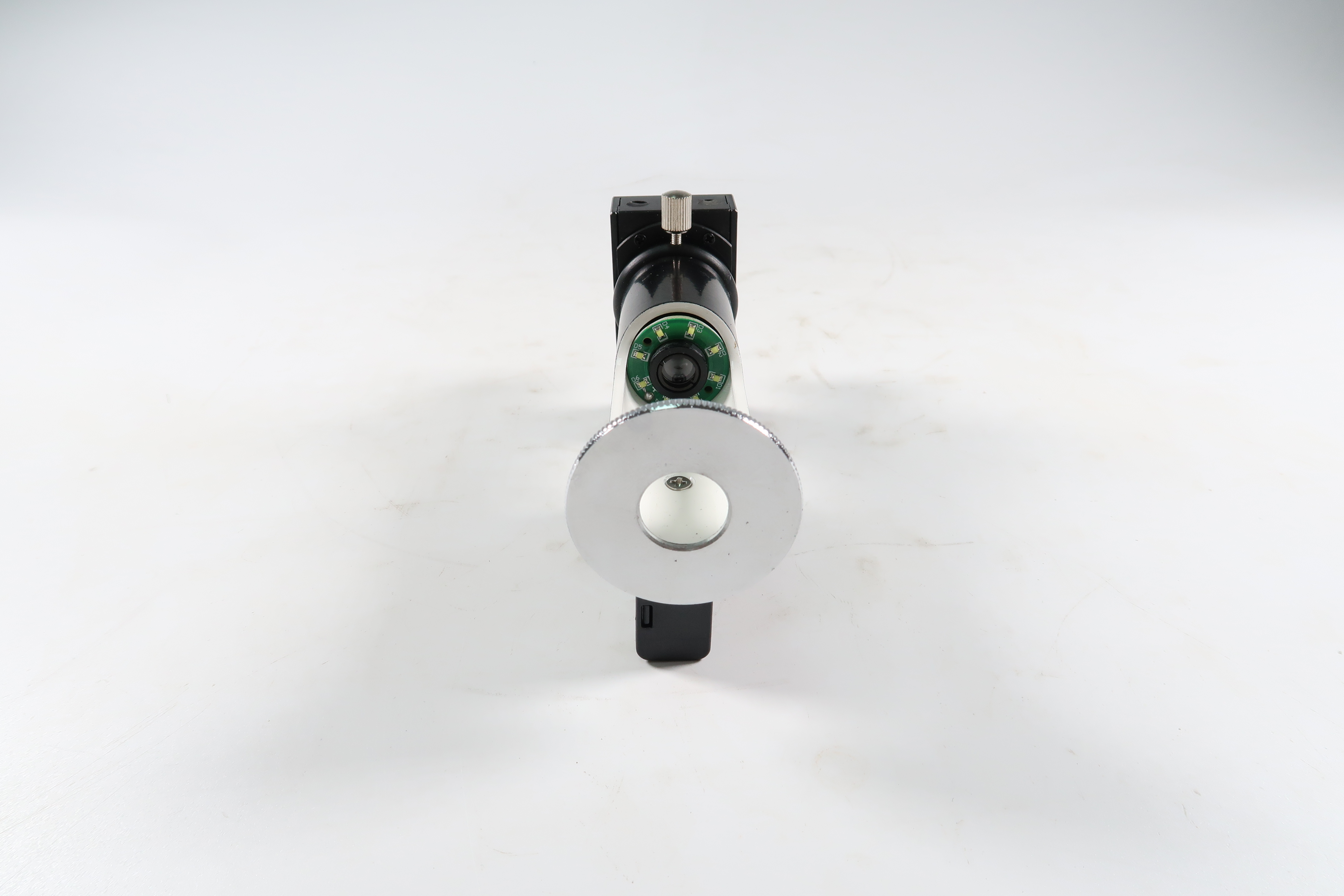

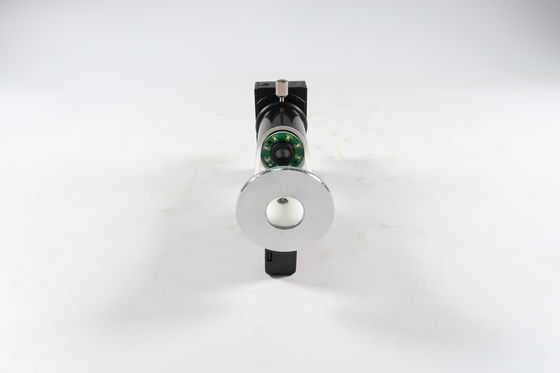

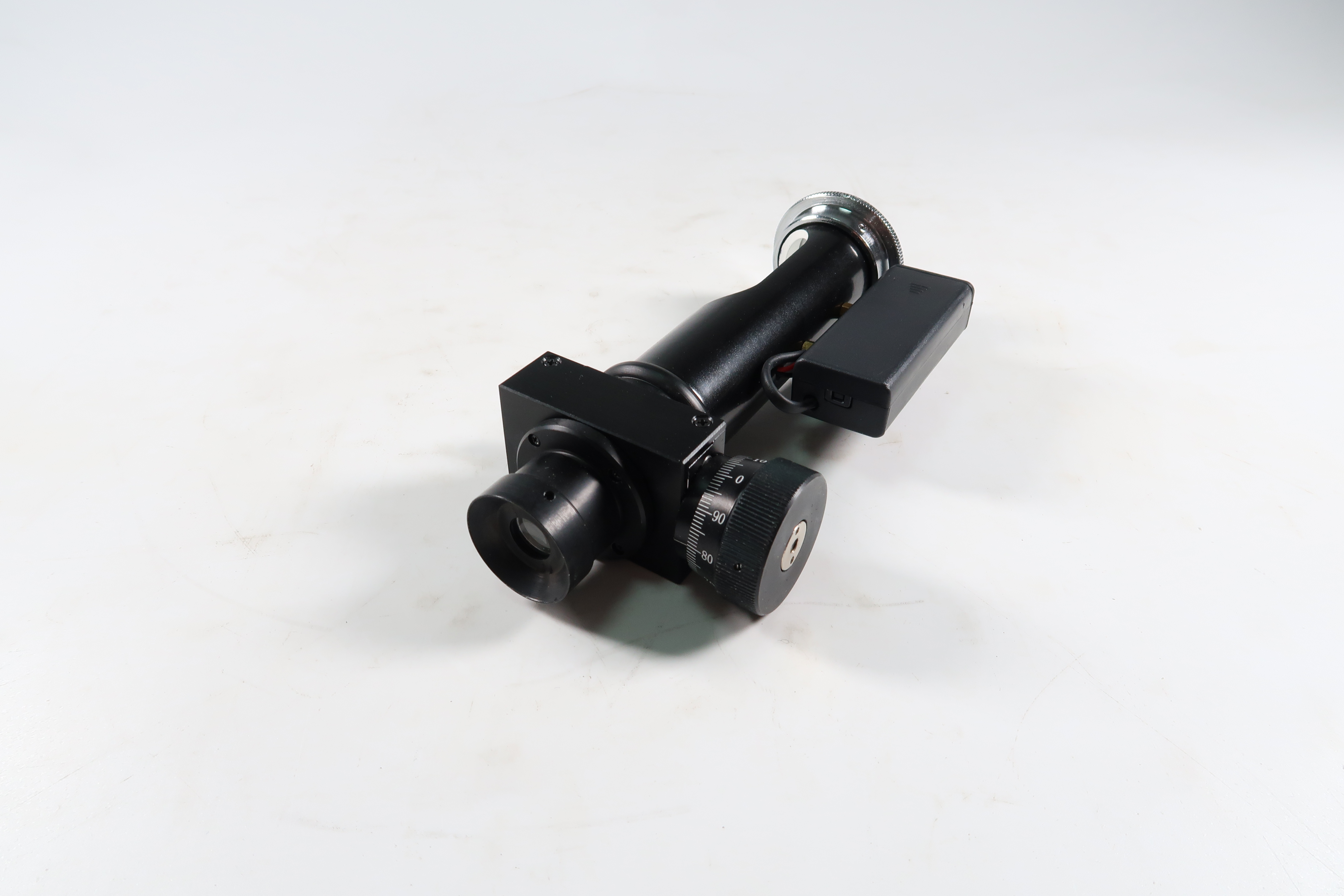

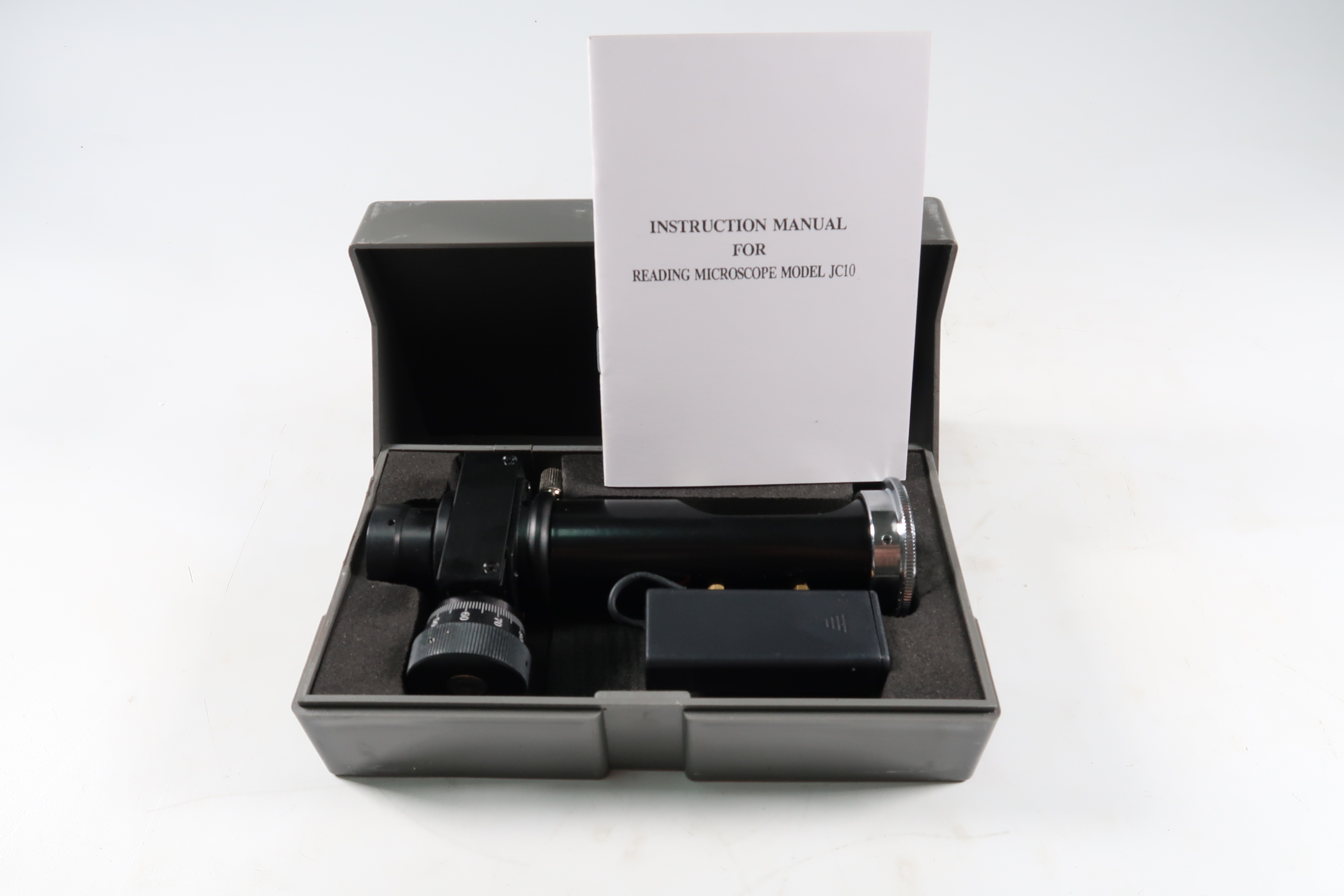

Readout Microscope Brinell Microscope 20X
high quality with cheap price!
Use:
Portable measuring reading microscope simple structure, easy to use, can be determined distance, groove width and groove distance, keyway width slit dents, the workpiece width, length, surface quality of metal, fiber, fabric density, such as field samples.
The apparatus is particularly suitable for measuring Brinell and Vickers hardness test indentation size.
Lighting:

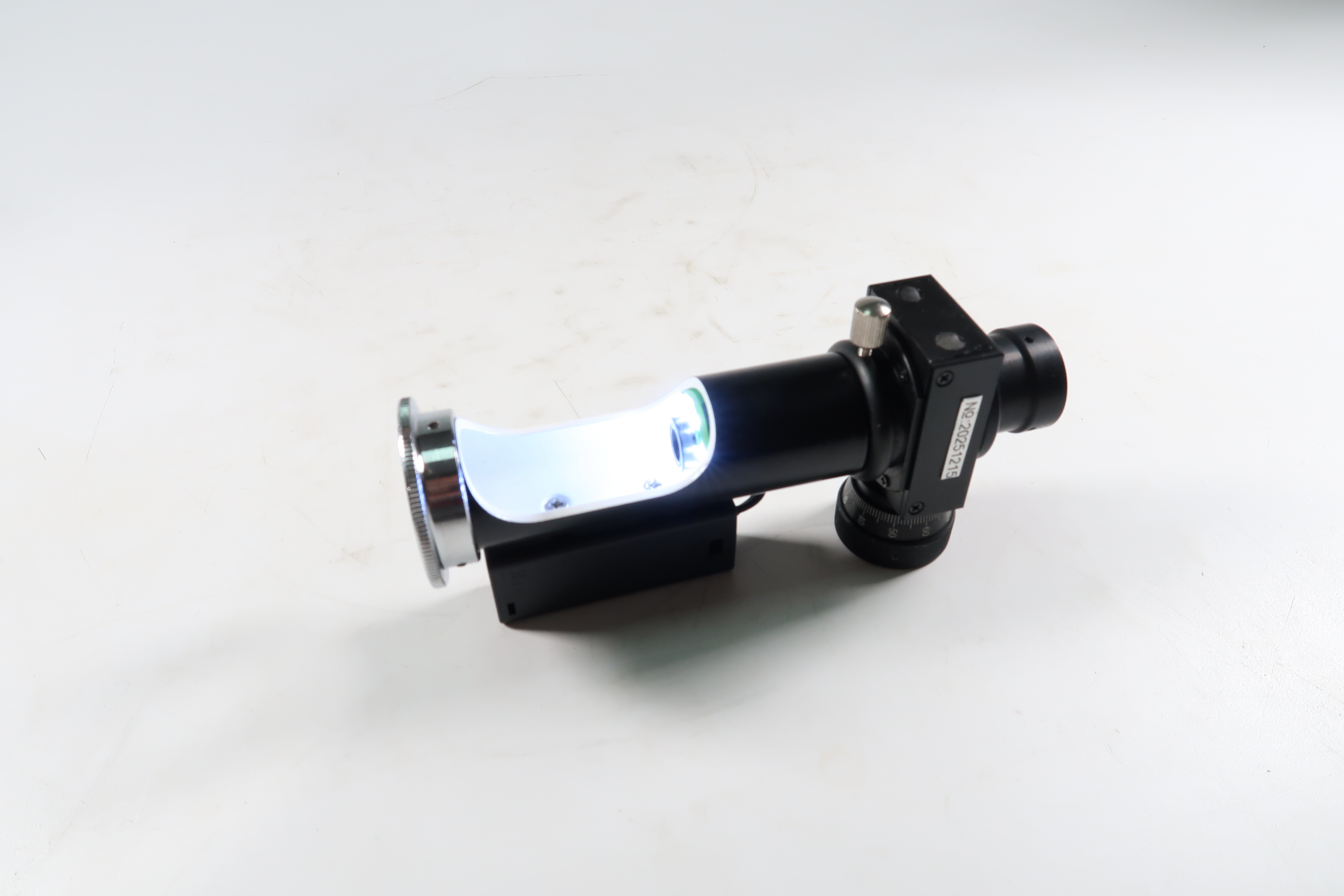

The apparatus employs advanced LED lighting systems, lighting in the field or inconvenience the use of the site.
| Model No. | JC-10 |
| Total magnifications | 20× |
| Eyepiece magnifications | 20× |
| Object magnifications | 1× |
| Reticle-foot lattice value | 1mm |
| Eyepiece grid reticle | Less than 8 feet |
| Effective measurement range | 0~6 mm |
| Micrometer drum Min. reading | 0.01mm |
| Net weight | 0.5kg |
