| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | TMTeck |
| 모델 번호: | TS22 |
| 최소 주문 수량: | 1 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 판지 상자 |
| 배달 시간: | 근무일 기준 25일 |
| 지불 조건: | T/T, 서부 동맹, 페이팔 |
| 공급 능력: | 100pcs/1주 |
| 모델 번호:: | 5L16-1.6x16-TS22/5L16-25.6x16-A3 | 요소: | 16 |
|---|---|---|---|
| 요소 형상: | 선의 | 보증: | 12개월 |
| 사례: | 스테인레스 스틸 | 색상: | 찢어진 조각 |
| 크기: | LxWxH36x36x25(mm)1.41x1.41x0.98(인치) |

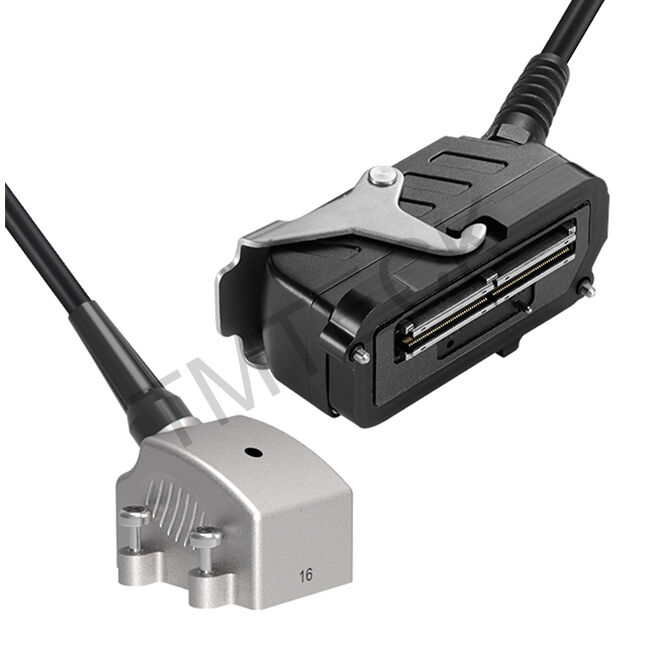

Deep Penetrating Probes:Low frequency with strong sound penetration,suitable for detecting thick parts
Advantages
1.High compatibility, can be compatible with most phased array flaw detectors.
2.Weld penetration deep penetration series.
3.Acoustically matched to Rexolite for most angle beam.
Application
1.Thick plate material and weld
2.Forgings, noise or granular materials
3.Moderate constitution and large monitoring range
Probe Specification
| Probe Series |
Model | Element Shape |
Freq (MHz) | E-Nos | Pitch (mm) |
Active (mm) |
Elev.(mm) | Size(LxWxH) |
| TS22/A3 | 3.5L16-1.6x16 | Linear | 3.5 | 16 | 1.60 | 25.6 | 16.0 |
36x36x25 (mm) 1.41x1.41x0.98 (in) |
| 5L16-1.2x16 | Linear | 5 | 16 | 1.20 | 19.2 | 16.0 | ||
| 5L16-1.6x16 | Linear | 5 | 16 | 1.60 | 25.6 | 16.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Wedge Specification
| Probe Series | Model | Compatible Model | Element Shape | Size(LxWxH) |
| TS22/A3 | N0L | 0°LW | -30°~30° |
LxWxH:36x36x25 (mm) LxWxH:1.41x1.41x0.98 (in) |
| N30L | 30°LW | 40°~70° | ||
| N45L | 45°LW | 40°~70° | ||
| N60L | 60°LW | 40°~70° | ||
| N45S | 45°SW | 40°~70° | ||
| N55S | 55°SW | 40°~70° | ||
| N60-IHC | 60°SW | 40°~70° | ||
| N60-AOD100 | 60°SW | 40°~70° | ||
| N60-IHC-AOD100 | 60°SW | 40°~70° |
Quick Details
Model Number:5L16-1.6x16-TS22/5L16-25.6x16-A3
Element:16
Element Shape:Linear
Size:LxWxH36x36x25(mm)1.41x1.41x0.98(in)
Warranty:12 Months
Case:Stainless steel
Application:Thick plate material and weld
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
