| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | TMTeck |
| 모델 번호: | TS30 R5 |
| 최소 주문 수량: | 1 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 판지 상자 |
| 배달 시간: | 근무일 기준 25일 |
| 지불 조건: | T/T, 서부 동맹, 페이팔 |
| 공급 능력: | 100pcs/1주 |
| 모델 번호:: | 5C64-1.65x8-TS30/5C64-105.6x8-R5 | 요소: | 64 |
|---|---|---|---|
| 요소 형상: | 오목한 | 보증: | 12개월 |
| 사례: | 스테인레스 스틸 | 색상: | 찢어진 조각 |

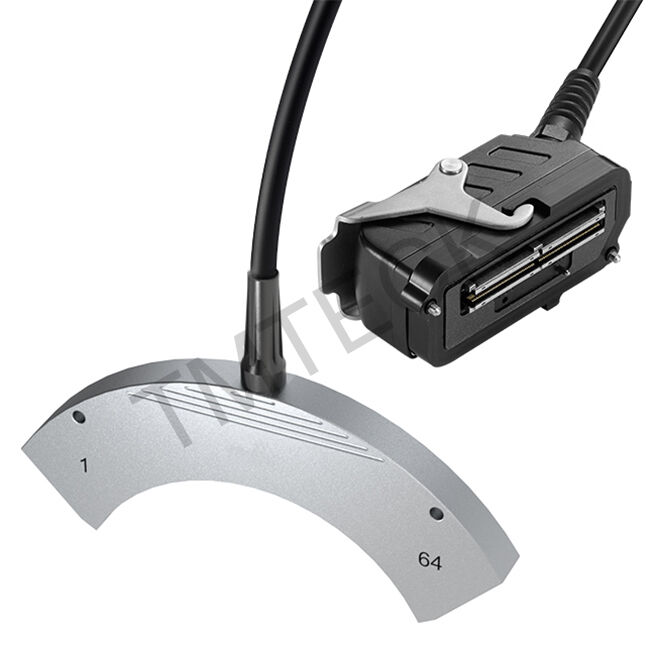

Concave probe: the detection is more stable, the concave array design is better to match the detection components, and is widely used for CFRP corner detection.
Advantages
1.Near-wall probes have shorter dead zones at both ends
2.Widely used in composite channel inspection
3.Can be used for C-scan detection of composites (delamination, debonding and porosity)
4.Automatic and manual scanning
Applications
1.Composite plate inspection
2.Immersion scanning area coverage
3.Plates, billets and bars
4.Disks, axles and shafts
Specification
| Probe Series |
Model |
Compatible Model |
Element Shape |
Freq (MHz) | E-Nos | Pitch (mm) |
Active (mm) |
Elev. (mm) |
Size(LxWxH) |
| TS30/R5 | 2.25C64-1.65x8 | 2.25C64-105.6x8 | Concave | 2.25 | 64 | 1.65 | 105.6 | 8.0 |
131x14x55 (mm) 5.16x0.55x2.17 (in) |
| 3.5C64-1.65x8 | 3.5C64-105.6x8 | Concave | 3.5 | 64 | 1.65 | 105.6 | 8.0 | ||
| 5C64-1.65x8 | 5C64-105.6x8 | Concave | 5 | 64 | 1.65 | 105.6 | 8.0 | ||
| 5C128-0.8x8 | 5C128-102.4x8 | Concave | 5 | 128 | 0.80 | 102.4 | 8.0 | ||
| 10C64-1.65x8 | 10C64-105.6x8 | Concave | 10 | 64 | 1.65 | 105.6 | 8.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Quick Details
Model Number:5C64-1.65x8-TS30/5C64-105.6x8-R5
Element:64
Element Shape:Concave
Size:R50,LxWxH 131x14x55(mm)5.16x0.55x2.17(in)
Application:Composite plate inspection
Warranty:12 Months
Case:Stainless steel
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
