| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | TMTeck |
| 모델 번호: | TS46 |
| 최소 주문 수량: | 1 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 판지 상자 |
| 배달 시간: | 4-6 작업 일수 |
| 지불 조건: | T/T, Western Union, PayPal |
| 공급 능력: | 100pcs/ 한 주 |
| 어플리케이션: | 소구경 파이프 용접 검사 | 모델 번호: | 10EF32-0.25x7-TS46/10EF32-8x7-A15 |
|---|---|---|---|
| 사례: | 스테인레스 스틸 | ||
| 강조하다: | low clearance ultrasonic transducer,small diameter pipe weld probe,low profile weld inspection transducer |
||
Internal focus probe: It acts on the space-constrained area, improves the
detection accuracy, and reduces the near-surface dead zone. It has a very important application in the detection of thin-walled small-diameter tubes.
Advantages
1.High compatibility, can be compatible with most phased array flaw detectors.
2.Acoustically matches Rexolite
3.Standard fittings with an outer diameter in the range of 21 mm to 115 mm, limited space detection
4.Smaller in size , internal focus improves the ability to detect small defects on thin-walled pipe fittings
5.Inspect minor defects Easy installation and manipulation from one side of a row of pipes, high accuracy helps to detect small defects.
6. Compatible with wedges for most beam angle detection applications
7. Combined with the scanner, complete most of the complex parts inspection.
Applications
1.Thin Wall application

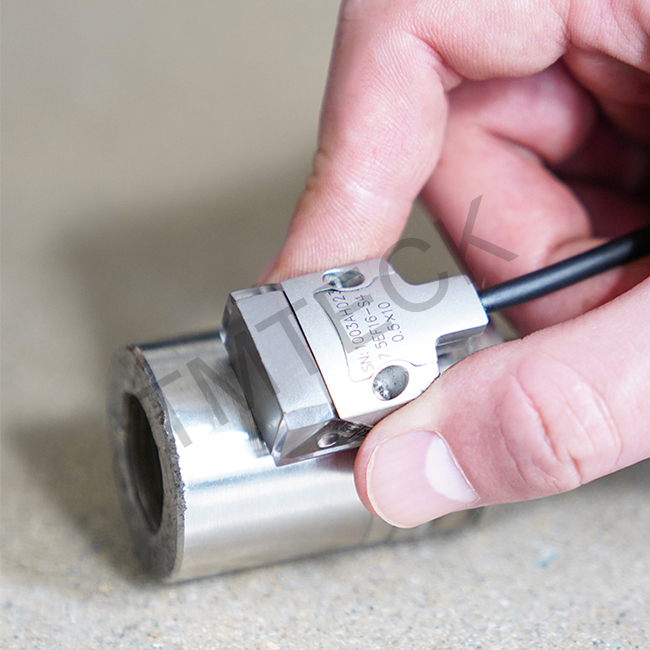

2.Small diameter pipe weld inspection
3.Boiler tube
4.Low clearance
5.Process pipes
Specification
| Probe Series |
Model |
Compatible Model |
Element Shape |
Freq. (MHz) |
E-Nos | Pitch (mm) |
Active (mm) |
Elev. (mm) |
Size (LxWxH) |
| TS46/A15 | 2.25EF16-0.5x10 | 2.25EF16-8x10 | Interal Foucs | 2.25 | 16 | 0.50 | 8.0 | 10.0 |
25x22x10 (mm) (in |
| 3.5EF16-0.5x10 | 3.5EF16-8x10 | Interal Foucs | 3.5 | 16 | 0.50 | 8.0 | 10.0 | ||
| 5EF16-0.5x10 | 5EF16-8x10 | Interal Foucs | 5 | 16 | 0.50 | 8.0 | 10.0 | ||
| 7.5EF16-0.5x10 | 7.5EF16-8x10 | Interal Foucs | 7.5 | 16 | 0.50 | 8.0 | 10.0 | ||
| 10EF16-0.5x7 | 10EF16-8x7 | Interal Foucs | 10 | 16 | 0.50 | 8.0 | 7.0 | ||
| 10EF32-0.25x7 | 10EF32-8x7 | Interal Foucs | 10 | 32 | 0.25 | 8.0 | 7.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Quick Details

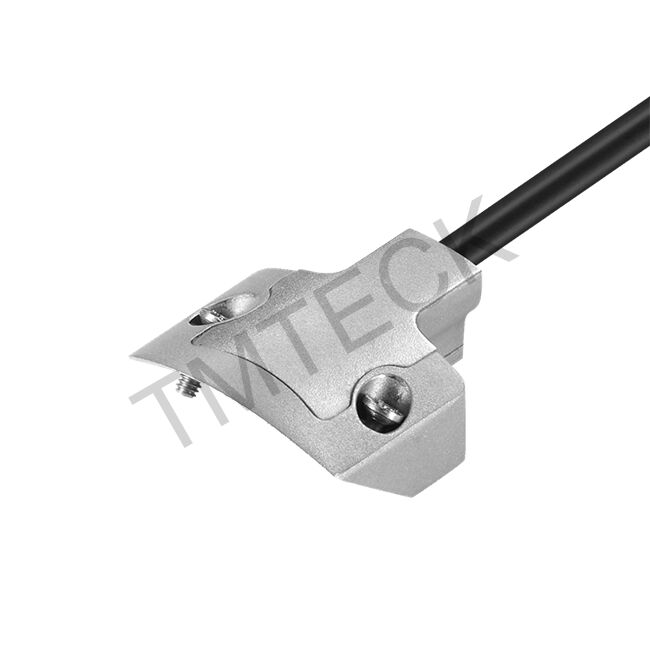

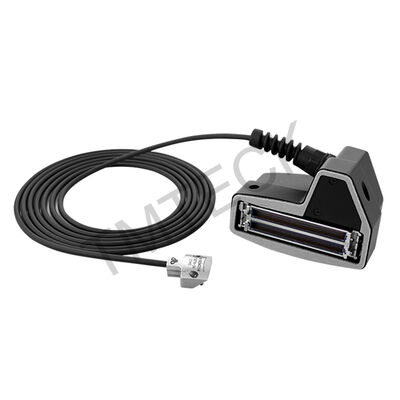

Model Number:10EF32-0.25x7-TS46/10EF32-8x7-A15
Size:LxWxH 0.93x0.55x0.93(in)/23.5x14x23.5(mm)
Warranty:12 Months
Case:Stainless steel
Element:32
Application:Small diameter pipe weld inspection
Customization:yes
Type:phased array probe
Element Shape:Interal Foucs
Color:Silver
MOQ:1
