| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | TMTeck |
| 모델 번호: | TS13 |
| 최소 주문 수량: | 1 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 판지 상자 |
| 배달 시간: | 25 일 |
| 지불 조건: | T/T, Western Union, PayPal |
| 공급 능력: | 100pcs/ 한 주 |
| 모델 번호 :: | 1L32-2.0x7-TS13/1L32-64x7-NW1 | 어플리케이션: | 복합판 검사 |
|---|---|---|---|
| 요소: | 32 | MOQ: | 1 |
| 맞춤화: | 예 | ||
| 강조하다: | Composite Plate inspection probe,Ts13 Near Wall ultrasonic transducer,Ultrasonic probe with warranty |
||

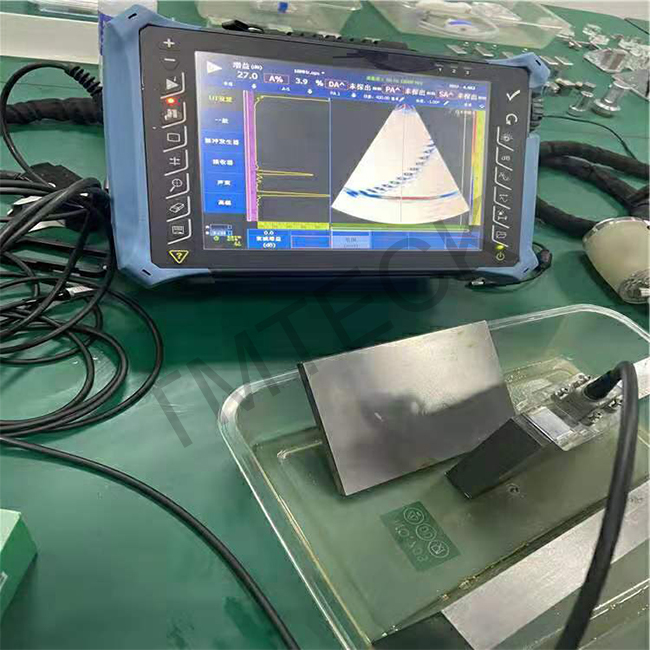

Near-wall narrow-shell probe: small width ensures a easy near-surface resolution.
Advantages
1.High compatibility, can be compatible with most phased array flaw detectors.
2.Near-wall probes have shorter dead zones at both ends
3.Widely used in composite channel inspection
4.Can be used for C-scan detection of composites (delamination, debonding and porosity)
5.Automatic and manual scanning
Applications
1.Composite plate inspection
2.Immersion scanning area coverage
3.Plates, billets and bars
4.Disks, axles and shafts
Specification
| Probe Series |
Model |
Compatible Model |
Element Shape |
Freq (MHz) | E-Nos | Pitch (mm) |
Active (mm) |
Elev. (mm) |
Size(LxWxH) |
| TS13/NW1 | 1L32-2.0x7 | 1L32-64x7 | Linear | 1 | 32 | 2.00 | 64.0 | 7.0 |
66x19x25 (mm) (in) |
| 2.25L64-1.0x7 | 2.25L64-64x7 | Linear | 2.25 | 64 | 1.00 | 64.0 | 7.0 | ||
| 3.5L64-1.0x7 | 3.5L64-64x7 | Linear | 3.5 | 64 | 1.00 | 64.0 | 7.0 | ||
| 5L64-1.0x7 | 5L64-64x7 | Linear | 5 | 64 | 1.00 | 64.0 | 7.0 | ||
| 7.5L64-1.0x7 | 7.5L64-64x7 | Linear | 7.5 | 64 | 1.00 | 64.0 | 7.0 | ||
| 10L64-1.0x7 | 10L64-64x7 | Linear | 10 | 64 | 1.00 | 64.0 | 7.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Quick Details
Model Number:1L32-2.0x7-TS13/1L32-64x7-NW1
Element:32
Element Shape:linear
Size:LxWxH 66x19x25(mm) 2.60x0.75x0.98(in)
Application:Composite plate inspection
Warranty:12 Months
Case:Stainless steel
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
