| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | TMTeck |
| 모델 번호: | TS25 |
| 최소 주문 수량: | 1 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 판지 상자 |
| 배달 시간: | 4-6 작업 일수 |
| 지불 조건: | T/T, Western Union, PayPal |
| 공급 능력: | 100pcs/ 한 주 |
| 모델 번호: | 7.5L128-0.6x10-TS25/7.5L128-76.8x10-I1 | 요소: | 128 |
|---|---|---|---|
| 요소 형상: | 정기선 | 보증: | 12개월 |
| 맞춤화: | 예 | ||
| 강조하다: | TS25 I1 immersion ultrasonic probe,single scan immersion transducer,30-90mm ultrasonic immersion probe |
||

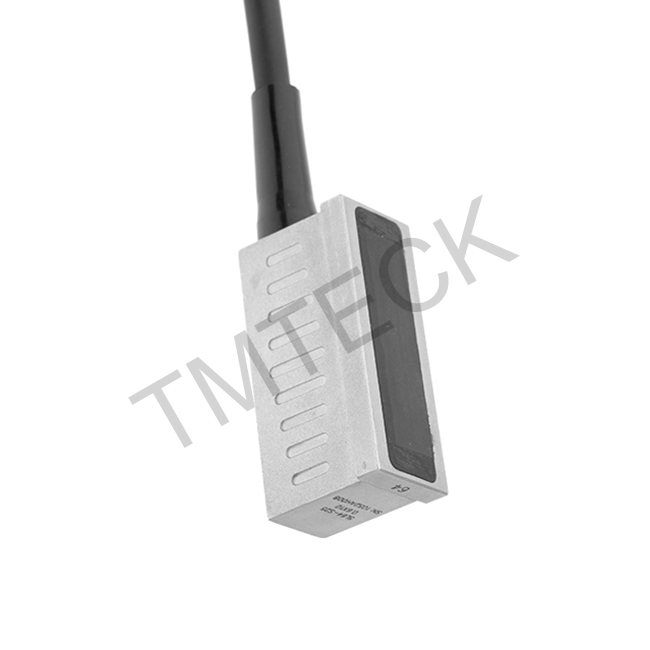

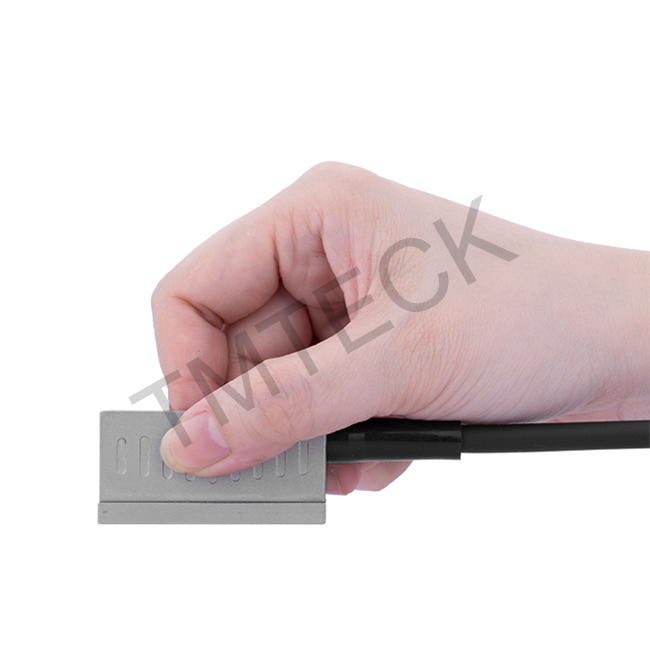

Immersion Probe: It can be used together with water wedges, or the test samples can be placed in water to complete the test.
Advantages
1. Acoustic impedance matched to water, suitable for work piece inspection of geometrically complex shapes.
2. Designed to fit onto the wedge, easy to couple to a variety of surfaces with adjustable underwater sound paths.
3.Single linear scan can cover distances from 30 mm to 90 mm.
4.High accuracy , can work normally for 24 hours under one meter of water depth.
Applications
1.Testing of sheets or fittings made of steel, aluminum or other materials.
2.The composite was tested to detect defects such as delamination and disbonding.
3.Large area scanning of the detected object, online thickness measurement.
| Probe Series |
Model |
Compatible Model |
Element Shape |
Freq (MHz) | E-Nos | Pitch (mm) |
Active (mm) |
Elev.(mm) | Size(LxWxH) |
| TS25/I1 | 5L64-0.6x10 | 5L64-38.4x10 | Linear | 5 | 64 | 0.60 | 38.4 | 10.0 |
50x21x25 (mm) (in |
| 7.5L128-0.6x10 | 7.5L128-76.8x10 | Linear | 7.5 | 128 | 0.30 | 38.4 | 10.0 | ||
| 10L64-0.6x7 | 10L64-38.4x7 | Linear | 10 | 64 | 0.50 | 32.0 | 7.0 | ||
| 15L64-0.5x7 | 15L64-32x7 | Linear | 15 | 64 | 0.50 | 32.0 | 7.0 |

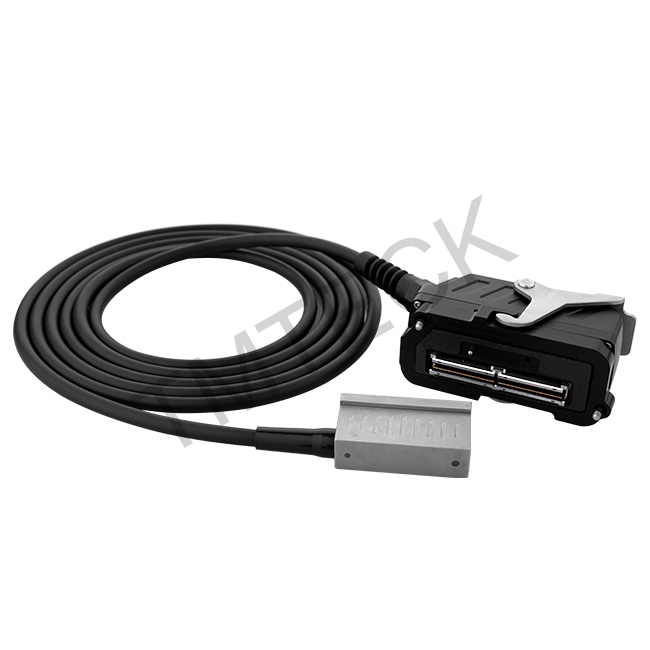

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Quick Details
Model Number:7.5L128-0.6x10-TS25/7.5L128-76.8x10-I1
Element:128
Element Shape:linear
Size:LxWxH 50x21x25(mm) 1.97x0.83x0.98(in)
Application:Testing of sheets or fittings made of steel
Warranty:12 Months
Case:Stainless steel
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
